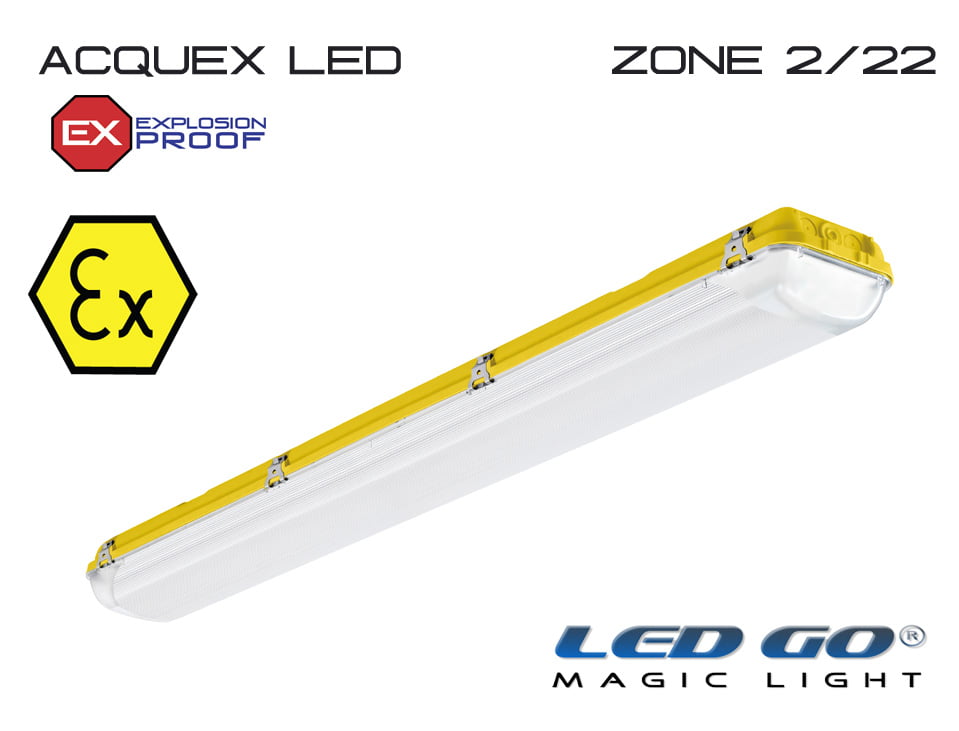

ACQUEX LED | Ex-Proof Led Etanj Armatür Zone2/22

Zone 2/22 patlayıcı ortamlar için basit, güvenli ve güvenilir

ACQUEX LED | Ex-Proof Led Etanj Armatür Zone2/22

    Zone 2/22 patlayıcı ortamlar için basit, güvenli ve güvenilir
    LED modülü ile doğrudan teması engelleyen dahili difüzörü sayesinde güvenli montaj.
    Üstün darbe direnci IK10.
    Tek bir armatürle daha fazla ihtiyacı karşılamak için DALI ve acil durum kiti versiyonları ile yüksek verimlilik.
    150 lm/W'a kadar yüksek ışık gücü
    Tavana veya duvara veya askıya hızlı, kolay ve güvenli montaj.

    II 3G Ex nA IIC T6 Gc
    II 3D Ex tc IIIC T85 Dc IP66

 Operational data



Description Order number Luminous flux (lm)Power (W)Efficiency (lm/W)Luminous flux in emergency (lm)1Colour temperature (K)CRI
ACQUEX LED-M 600 ET PC INOX 10121627 2200 18 125 4000 >80
ACQUEX LED-M 600 ET EB3 PC INOX 1 10216287 2200 18 125 200 4000 >80
ACQUEX LED-M 600 ETDD PC INOX 10209294 2200 18 125 4000 >80
ACQUEX LED-M 1200 ET PC INOX 10121628 4800 32 150 4000 >80
ACQUEX LED-M 1200 ET EB3 PC INOX 1 10121630 4800 32 150 470 4000 >80
ACQUEX LED-M 1200 ETDD PC INOX 10209295 4800 32 150 4000 >80
ACQUEX LED-M 1500 ET PC INOX 10121629 5800 40 145 4000 >80
ACQUEX LED-M 1500 ET EB3 PC INOX 1 10121631 5800 40 145 420 4000 >80
ACQUEX LED-M 1500 ETDD PC INOX 10130497 5800 40 145 4000 >80
Dimensions and logistics



Description X Xm Y Z
mm mm mm mm L x W x H mmPcs./ BoxBox 2 Groupage Pcs./Euro palletDouble pallet Pcs./Euro pallet
ACQUEX LED-M 600… 665 390 145 101 675 x 151 x 105 1 2.0 150 90 + 90
ACQUEX LED-M 1200… 1282 800 145 101 1289 x 151 x 105 1 3.3 75 45 + 45
ACQUEX LED-M 1500… 1578 1100 145 101 1589 x 151 x 105 1 4.0 75 45 + 45
Please check with our Back Office to confirm logistic data 2 Weight in EB3 versions: +0.2KG



1 In emergency versions maximum power consumption increases in 4W during battery charging, which is approximately 5% of the time that luminaire is on. The rest of the



time power consumption is as indicated.

Mechanical characteristics
Housing Compressed fibreglass reinforced polyester (GRP) in yellow RAL 1003Grey RAL 7035 available
Diffuser Injected polycarbonate transparent diffuser with UV protectionPrismatic design for an optimum light distribution
Closing clips Stainless steel
Gasket Polyurethane
Gear tray White lacquered steel plate
Cable entry PA ATEX cable gland M20 (M25 available)
Fixing clips Stainless steel



Electrical characteristics
Connection 3/5 push wire terminal block
Power factor > 0.95 full load
THD < 10% full load
Flicker factor < 1%



Functional characteristics
Lifetime L80B50 Up to 70,000 hours
Guarantee 5 years
Fire protection Flammability (UL94): HBGlow wire test (EN 60695-2-11): 650º
